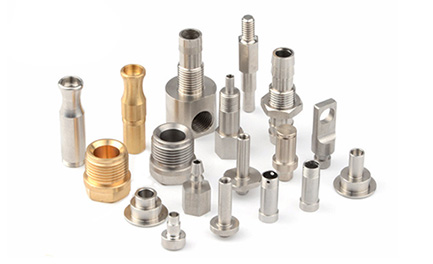

CNC Turning Service

Obtain high-quality custom turned parts for rapid prototyping and end-use production,with lead times as short as one day.

Certification: ISO 9001:2015
Our CNC turning service delivers custom prototypes and production parts in as quick as 3 days.
Utilizing a CNC lathe with live tooling, we can machine features such as axial and radial holes, flats,grooves, and slots.

CNC turning is commonly applied for:
 Functional prototypes and end-use parts

 Components with cylindricalfeatures

 Parts requiring axial and radial holes, flats, grooves, and slots

CNC Turning Design Guidelines

Our fundamental CNC turning guidelines encompass key design considerations to improve part manufacturabiity, enhance aesthetic qualty, and reduce production time.
    Imperial Metric
Maximum Dimensions Diameter 4.00 in. 101.6 mm
Length 10 in. 254 mm
Minimum Dimensions Diameter 0.15 in. 3.81 mm
Length 0.06 in. 1.52 mm
0.64 mm
Wall Thickness 0.025 in.
Angle 30° 30°
Tolerances   +/-0.004 in. +/-0.10 mm

Additional CNC Turning Guidelines

While small features can be accommodated, the diameter in any area should not drop below 0.035 inches (0.89mm).
Sharp conical points are acceptable, provided angles exceed 30". Wals thinner than 0.020 inches (0.5mm) generally do not withstand the machining process.

Materials for CNC Turning

We offer a variety of metal materials suitable for different part applications and industries. Options include aluminum, brass, mild steel, stainless steel, alloy steel, and titanium for turned components.
Aluminum
Brass
Mild Steel
Alloy Steel
Stainless Steel
Titanium

Surface Finish Options for Turned Parts

Turned parts generally feature a very smooth surface finish. The as-machined finish of cylindrical areas is typically smoother when produced on a lathe compared to a mill, so keep this in mind when choosing the machining method for parts that can be processed by either. Areas machined with live tooling, such as flats and slots, may show visible tool marks.

If prefered, metal parts can be lightly bead blasted to achieve a fine matte finish. For hard metals like steel and stainless steel, edges can be deburred with a light bead blast to remove metal slivers and smooth sharp or rough areas.

Aluminum

Edges broken with visible tool marks
Edges broken with light bead blast
Sharp edges with visible tool marks

All Other Metals

Edges broken with visible tool marks
Edges broken with light bead blast


Anodizing and Chromate Plating Specifications

Anodize Hard Anodize Chromate
MIL-A-8625 Type Ⅱ,Class 2(Blk)

MIL-A-8625 Type Ⅱ,Class 1(Clr)
MIL-A-8625 Type Ⅲ,Class 2(Blk) MIL-DTL-5541 Type Ⅱ,Class 3(Clr)

Quick-Turn Finishing

Here are the requirements to achieve leadtime within 4 days (1-day expedite + 3 days for plating):
Suitable for Aluminum 6061/6082/7075 materials
Threaded holes should be plugged
No masking services available

High-Requirement Finishing

For high-standard compliance, consider our custom precision machining services.For complex anodizing and plating needs, utilize our digital network of manufacturers, ideal for components needing specialized colors or materials like titanium, nickel. etc.

Understanding CNC Turning

CNC turning involves removing material from a rotating metal rod using a cutting tool to produce finished components. Our CNC lathes are capable of live tooling, enabling the machining of flat features and holes in the workpiece. We also offer threading for both the outside diameter (OD) and inside diameter(lD).

The resulting turned parts can retain the as-machined finish, showing tool marks, or they can be bead blasted. Upon completion, parts are inspected packaged,and swiftly shipped.
